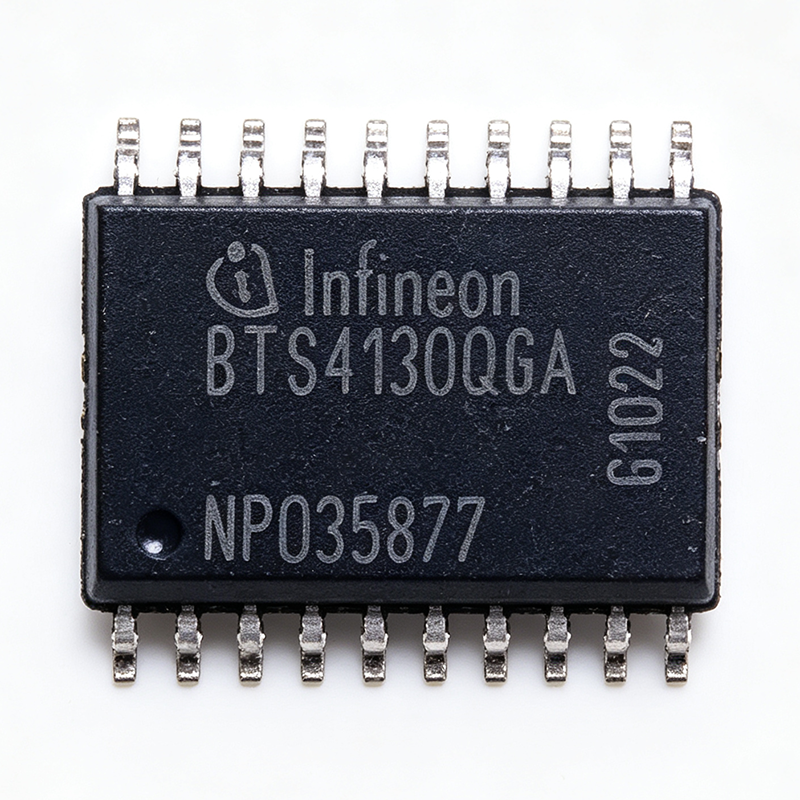

BTS6133DAUMA1 vs BTS4130QGAXUMA1 Comparison
Detailed side-by-side comparison of BTS6133DAUMA1 by Infineon and BTS4130QGAXUMA1 by Infineon. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | BTS6133DAUMA1 | BTS4130QGAXUMA1 |
|---|---|---|
| Brand | Infineon | Infineon |
| Category | Power MOSFET Drivers | Power MOSFET Drivers |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $1.98 | $1.86 |
| Manufacturer | Infineon Technologies | β |
| Part Number | BTS6133DAUMA1 | β |
| Product Type | Smart High-Side Power Switch | Quad Smart High-Side Power Switch |
| Technology | SIPMOS (N-channel MOSFET with control IC) | β |
| Switch Configuration | 1:1 (single high-side) | β |
| Number of Outputs | 1 | β |
| Peak Drain Current | 41 A | β |
| Continuous Load Current | 8 A | β |
| Operating Voltage Range | [DATA_NEEDED: VBB operating range] | β |
| On-State Resistance (RDS(on)) | [DATA_NEEDED: RDS(on) at 25C] | β |
| Package | PG-TO252-5-11 (DPAK-5) | PG-DSO-20-32 (20-pin DSO, 7.50 mm width) |
| Pin Count | 5 | β |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature Range | -40C to +150C | -40 C to +150 C junction |
| Protection Features | Over-temperature, short-circuit, overload, under-voltage, over-voltage, current limitation | Current limit, overtemperature shutdown, overvoltage clamp, reverse battery |
| Diagnostic Feedback | Yes (status / fault pin) | β |
| MSL Level | 3 (per JEDEC J-STD-020, typical for DPAK) | 3 (per JEDEC J-STD-020) |
| RoHS Status | Compliant | Compliant |
| AEC-Q100 Qualified | AEC-Q100 qualified (automotive grade) | β |
| Datasheet Document Size | 257 Kbytes (15 pages) | β |
| Number of Channels | β | 4 |
| Topology | β | High-Side N-Channel MOSFET with charge pump |
| Continuous Load Current per Channel | β | 2.1 A |
| On-State Resistance R_DS(on) per Channel | β | 130 mOhm typical |
| Operating Supply Voltage | β | 6 V to 18 V (extended to 28 V transient) |
| Overvoltage Clamp (Load Dump) | β | 45 V typical |
| Quiescent Current (Standby) | β | [DATA_NEEDED: quiescent current value] |
| Automotive Qualification | β | AEC-Q100 qualified |
| Diagnostic Output | β | Status feedback pin |
