RF Transceivers
Products (20)
AD9361BBCZ - RF Agile Transceiver 70MHz-6GHz | Analog Devices
The AD9361BBCZ is a high performance, highly integrated radio frequency (RF) Agile Transceiver™ from Analog Devices, designed for 3G and 4G base station applications. It operates over a frequency range of 70 MHz to 6 GHz and features a 2x2 transceiver architecture with integrated 12-bit DACs and ADCs. The device is housed in a 144-ball CSP_BGA package (10 mm x 10 mm) and supports configurable CMOS/LVDS digital baseband interfaces. An RF transceiver is a device that combines both a transmitter and a receiver in a single unit, sharing common circuitry. The AD9361 is a highly integrated RF Agile Transceiver that integrates the RF front end, mixed-signal baseband, and digital interfaces, reducing the need for multiple discrete components. It is part of the broader category of RF integrated circuits (RFICs) used in wireless communication systems, including software-defined radios (SDR), cellular base stations, and point-to-point communication links. Key features include a wide frequency range of 70 MHz to 6 GHz, support for channel bandwidths from 200 kHz to 56 MHz, and a noise figure of 2 dB (typical) in the receive path. The transmitter offers an error vector magnitude (EVM) of 0.4% (typical) at -10 dBm output power. The device also includes integrated fractional-N synthesizers, digital filters, and a serial peripheral interface (SPI) for configuration. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. Technically, the AD9361 employs a direct conversion architecture with I/Q mixing, enabling high linearity and low power consumption. It integrates two independent receive channels and two transmit channels, each with programmable gain control and filtering. The device supports both FDD and TDD modes, making it versatile for various wireless standards. The digital baseband interface can be configured as CMOS or LVDS, with data rates up to 122.88 MSPS. Typical applications include software-defined radios, cellular base stations (3G/4G), small cells, military communications, and test and measurement equipment. Its wide frequency range and programmability allow it to be used in multi-standard, multi-band systems, reducing design complexity and time-to-market. When designing with the AD9361, careful attention must be paid to power supply decoupling and PCB layout to minimize noise and ensure optimal RF performance. The device requires multiple supply rails (1.3V, 2.5V, and 3.3V) and a clean reference clock. Proper thermal management is also essential due to the high level of integration and power dissipation.
AD9361BBCZ-REEL - 70MHz-6GHz RF Agile Transceiver | Analog Devices
The AD9361BBCZ-REEL is a high performance, highly integrated radio frequency (RF) Agile Transceiver from Analog Devices, designed for 3G and 4G base station applications. It operates over a frequency range of 70 MHz to 6 GHz, covering a wide spectrum of cellular and other wireless standards. The device integrates a 2x2 transceiver architecture with configurable 12-bit CMOS/LVDS digital baseband interface, enabling flexible connection to baseband processors. Housed in a 144-ball CSPBGA package, it offers a compact solution for multi-band, multi-standard radio designs. An RF transceiver is a device that combines both a transmitter and a receiver, sharing common circuitry. The AD9361 is an agile transceiver, meaning it can be dynamically reconfigured to support different frequency bands, channel bandwidths, and modulation schemes. This flexibility makes it a key component in software-defined radio (SDR) systems, where the same hardware can adapt to various communication standards without redesign. The AD9361 sits at the heart of the RF front-end, bridging the antenna and the digital baseband processor, and is essential for modern wireless infrastructure. Key features include a frequency range of 70 MHz to 6 GHz, support for channel bandwidths from less than 200 kHz to 56 MHz, and a highly linear receiver with noise figure as low as 2 dB. The transmitter offers excellent error vector magnitude (EVM) performance, enabling high-order modulation schemes. The device also includes integrated fractional-N synthesizers, digital filters, and automatic gain control (AGC), reducing external component count and simplifying design. Technically, the AD9361 employs a direct conversion architecture with advanced calibration algorithms to mitigate I/Q imbalance and DC offset. It supports both FDD and TDD modes, and its programmable interface allows seamless integration with various baseband processors. The device operates from a 1.3V core supply and includes multiple power-down modes for efficient power management. Typical applications include 3G/4G base stations, small cells, software-defined radios, military communications, and test and measurement equipment. Its wide frequency range and programmability make it suitable for multi-band, multi-standard radio platforms. When designing with the AD9361, careful attention must be paid to power supply decoupling and PCB layout to achieve optimal RF performance. The device requires a clean 1.3V supply and proper grounding to minimize noise and interference.
ADAR1000 - 8-16GHz 4-Channel Beamformer | Analog Devices
The ADAR1000 is a 4-channel, X band and Ku band beamforming core chip for phased arrays, operating from 8 GHz to 16 GHz. It is designed for half-duplex operation between receive and transmit modes, making it ideal for advanced radar and communication systems. The device is fabricated in a silicon-germanium, bipolar CMOS (BiCMOS) process and is available in a compact 88-terminal, 7 mm × 7 mm LGA package, specified from −40°C to +85°C. A beamforming IC is a specialized RF component that controls the phase and amplitude of signals in an antenna array to steer the beam electronically without moving parts. It is a key building block in phased array systems, which are used in radar, satellite communication, and 5G networks. The ADAR1000 integrates four channels, each with phase and gain control, enabling precise beam steering in both transmit and receive paths. Key features include 4-channel operation, half-duplex T/R switching, SPI control interface, and support for daisy-chaining multiple devices for larger arrays. The device offers high integration, reducing the component count and simplifying the design of phased array front-ends. Its wide frequency range covers both X band (8-12 GHz) and Ku band (12-16 GHz), providing flexibility for various applications. The ADAR1000 uses a BiCMOS process that balances high-frequency performance with low power consumption. The LGA package is designed for RF performance, with careful attention to thermal and electrical characteristics. The device includes on-chip registers for configuration, which can be programmed via SPI, and supports both SPI and T/R pin control modes. Typical applications include phased array radar, satellite communication, 5G beamforming, and electronic warfare systems. The ADAR1000 is also used in test and measurement equipment for beamforming validation. Its ability to daisy-chain up to four devices on a single evaluation board makes it scalable for larger arrays. When designing with the ADAR1000, it is critical to follow the recommended PCB layout and thermal management guidelines, as the LGA package requires specific footprint and stackup considerations. The device's SPI interface allows for flexible control, but careful attention must be paid to register programming to ensure proper operation.
ADL5385ACPZ - 30MHz-2.2GHz Quadrature Modulator | Analog Devices
The ADL5385ACPZ is a silicon, monolithic, quadrature modulator designed for use from 30 MHz to 2200 MHz. It is housed in a 24-lead LFCSP (lead frame chip scale package) with an exposed pad, providing excellent thermal and electrical performance. The device takes signals from two differential baseband inputs and modulates them onto two carriers in quadrature, enabling high-performance intermediate frequency (IF) and direct radio frequency (RF) modulation for communication systems. A quadrature modulator is a key building block in modern communication transmitters, converting baseband I/Q signals into a modulated RF output. It is essential for digital modulation schemes such as QPSK, QAM, and OFDM, which are widely used in wireless standards including LTE, Wi-Fi, and point-to-point microwave links. The ADL5385's excellent phase accuracy and amplitude balance ensure minimal error vector magnitude (EVM), which is critical for high data-rate links. Key features of the ADL5385ACPZ include a wide operating frequency range of 30 MHz to 2200 MHz, high output linearity, and low noise. The device operates from a single 5 V supply and features a differential baseband interface with a common-mode voltage of approximately 2.5 V. It provides a differential RF output that can be used with an external balun to convert to single-ended. The modulator also includes an enable function for power-down control, reducing quiescent current when not in use. Technically, the ADL5385 uses a double-balanced mixer architecture with integrated quadrature phase splitting. The LO input is internally divided into I and Q phases, and each is mixed with the corresponding baseband signal. The outputs are summed to produce the modulated RF signal. The device achieves high sideband suppression and carrier feedthrough performance, which are essential for spectral purity. The baseband inputs accept a wide common-mode range, simplifying interface to DACs and baseband processors. Typical applications include cellular base stations, microwave point-to-point radios, satellite communications, and test equipment. The ADL5385 is also suitable for software-defined radio (SDR) transmitters where flexibility and performance are paramount. Its wide frequency range covers multiple bands, reducing the need for multiple modulators. When designing with the ADL5385ACPZ, ensure proper grounding and decoupling of the supply pins. The exposed pad should be soldered to a low-impedance ground plane for optimal thermal and RF performance. The baseband inputs should be driven with differential signals to maintain balance and minimize even-order distortion.
ADL5385ACPZ-R7 - 50MHz-2.2GHz Quadrature Modulator | Analog Devices
The ADL5385ACPZ-R7 is a silicon, monolithic, quadrature modulator designed for use from 30 MHz to 2200 MHz. It is housed in a 24-lead LFCSP (WFQFN) package with an exposed pad, and is supplied in tape and reel packaging. This device provides excellent phase accuracy and amplitude balance, enabling high performance intermediate frequency (IF) and direct radio frequency (RF) modulation for communication systems. A quadrature modulator is a key building block in modern wireless transmitters. It takes two baseband signals (I and Q) and modulates them onto a carrier signal, producing a modulated RF output. This architecture is fundamental to digital communication standards such as WCDMA, LTE, and WiMAX, where complex modulation schemes require precise I/Q balance. The ADL5385 simplifies the design of such transmitters by integrating the modulator function into a single IC, reducing component count and board space. Key features of the ADL5385 include a wide operating frequency range from 30 MHz to 2200 MHz, excellent phase accuracy and amplitude balance, and a differential baseband interface. The device operates from a single 5V supply and provides a high output IP3, making it suitable for demanding linearity requirements. The LFCSP package with exposed pad ensures efficient thermal dissipation, while the tape and reel packaging (R7 suffix) is optimized for high-volume production. Technically, the ADL5385 uses a double-balanced mixer topology with integrated quadrature phase splitting. This architecture provides high carrier feedthrough suppression and excellent sideband suppression, which are critical for spectral purity. The device also features a wide baseband bandwidth, allowing it to support both narrowband and wideband modulation schemes. Its performance is specified over the full -40°C to +85°C temperature range, ensuring reliable operation in diverse environments. Typical applications include cellular base stations, point-to-point radios, satellite communications, and test and measurement equipment. In these systems, the ADL5385 is used to upconvert baseband I/Q signals to RF frequencies, enabling efficient and accurate signal transmission. Its high linearity and low noise make it ideal for high-performance communication links. When designing with the ADL5385, it is important to provide proper decoupling on the supply pins and to match the differential baseband inputs to the driving source impedance. The exposed pad should be soldered to a ground plane for optimal thermal and electrical performance. Additionally, the LO input should be driven with a clean, well-leveled signal to achieve the best carrier feedthrough performance.
ADMV1013S-CSL - 24-44GHz Upconverter | Analog Devices
The ADMV1013S-CSL is a wideband, microwave upconverter from Analog Devices, designed for point-to-point microwave radio systems operating in the 24 GHz to 44 GHz frequency range. It comes in a compact, thermally enhanced 40-terminal land grid array (LGA) package and operates over a case temperature range of -40°C to +85°C. This device is part of the Commercial Space Products Program, offering enhanced reliability for space and high-reliability applications. A microwave upconverter is a critical component in RF transmitters that translates a lower intermediate frequency (IF) signal to a higher radio frequency (RF) for transmission. In the hierarchy of RF signal chains, the upconverter sits between the baseband/modem and the power amplifier, converting the modulated IF signal to the desired RF band. The ADMV1013S-CSL supports two modes of frequency translation, providing flexibility in system architecture. Key features include wideband operation from 24 GHz to 44 GHz, which covers multiple microwave bands including K and Ka bands. The device offers high linearity and low conversion loss, essential for maintaining signal integrity in high-order modulation schemes. The LGA package provides excellent thermal performance, enabling reliable operation in demanding environments. The -40°C to +85°C case temperature range ensures suitability for both commercial and space-grade applications. Technically, the ADMV1013S-CSL integrates a double-balanced mixer, local oscillator (LO) buffer, and RF amplifier in a single package. This integration reduces external component count and simplifies board design. The device is optimized for point-to-point microwave links, where frequency stability and phase noise are critical. The upconverter's wideband nature allows it to be used across multiple frequency plans without redesign. Typical applications include 5G mmWave infrastructure, satellite communications, radar systems, and test and measurement equipment. In 5G base stations, the ADMV1013S-CSL can upconvert IF signals to the 24-44 GHz band for massive MIMO and beamforming arrays. For satellite ground terminals, it provides reliable frequency conversion for Ka-band links. When designing with this device, ensure proper impedance matching at all ports and provide adequate grounding for the LGA package. The thermal pad should be connected to a solid ground plane with thermal vias to maximize heat dissipation. Also, consider the LO drive level and isolation to prevent spurious emissions.
ADMV4821 - 24-29.5GHz 5G Beamformer | Analog Devices
The ADMV4821 is a highly integrated silicon germanium (SiGe) beamformer from Analog Devices, operating over the 24 GHz to 29.5 GHz frequency range. It addresses the n257, n258, and n261 5G NR bands in a single footprint, supporting 16 selectable transmit (TX) and 16 selectable receive (RX) channels. The device provides both horizontal and vertical polarization through independent RFV and RFH common pins, enabling dual-polarized antenna arrays. It is packaged in a compact LGA package that allows top-side heatsinking for efficient thermal management and flexible antenna placement on the opposite side of the PCB. A beamformer is a key component in phased-array antenna systems, responsible for adjusting the phase and amplitude of signals to steer the antenna beam electronically without moving parts. In 5G mmWave base stations, beamformers enable massive MIMO (Multiple-Input Multiple-Output) configurations, improving spectral efficiency and coverage. The ADMV4821 integrates 16 channels, each with independent phase and gain control, into a single IC, significantly reducing the size and complexity of the RF front-end compared to discrete implementations. Key features include a wide operating frequency range covering multiple 5G bands, 16 TX and 16 RX channels, dual polarization support, and a serial peripheral interface (SPI) for control. The device operates over a -40°C to +95°C case temperature range, making it suitable for outdoor base station environments. The LGA package with top-side heatsinking allows for efficient heat dissipation, crucial for high-power beamforming applications. The ADMV4821 uses a SiGe process technology, offering a good balance of performance and integration for mmWave frequencies. The SPI interface enables precise control of phase and gain settings, with a protocol consisting of a read/write bit, 15 register address bits, and 8 data bits. The device includes internal LDO regulators, allowing it to be powered from a single supply, simplifying power supply design. Typical applications include 5G NR base stations, phased-array antennas, satellite communications, and radar systems. In 5G base stations, the ADMV4821 is used in the active antenna unit to form and steer beams, improving signal quality and capacity. Its dual-polarization capability supports polarization diversity, enhancing link reliability. When designing with the ADMV4821, careful attention must be paid to thermal management, as the device can dissipate significant power. The LGA package's top-side heatsinking should be utilized with an appropriate heatsink or thermal interface material. Additionally, the SPI interface should be properly terminated and decoupled to ensure reliable control.
ADMV4821B - 24-29.5GHz Dual-Pol Beamformer | Analog Devices
The ADMV4821B is a dual-polarization beamformer from Analog Devices, operating over the 24 GHz to 29.5 GHz frequency range, covering the n257, n258, and n261 5G NR bands in a single footprint. It integrates 16 selectable transmit (TX) channels and 16 selectable receive (RX) channels, supporting horizontal and vertical polarization with matched 50-ohm single-ended RF inputs and outputs. This device is designed for phased-array antenna systems in 5G base stations and satellite communications, offering high integration to simplify beamforming architectures. A beamformer is a key component in phased-array systems that electronically steers the antenna beam by adjusting the phase and amplitude of signals across multiple antenna elements. The ADMV4821B belongs to the class of RF beamforming ICs, which are essential in modern 5G NR and radar systems. By integrating multiple channels and dual polarization, it reduces the component count and PCB area compared to discrete implementations, enabling compact and cost-effective antenna modules. Key features include a wide RF frequency range of 24 GHz to 29.5 GHz, 16 TX and 16 RX channels, dual polarization support, and matched 50-ohm single-ended interfaces. The device is recommended for new designs, indicating active lifecycle status. It is packaged in a compact BCCZ package, suitable for surface-mount assembly, and is designed to meet the stringent performance requirements of 5G infrastructure. Technically, the ADMV4821B integrates phase shifters, gain amplifiers, and T/R switches on a single die, providing precise beam control. The dual-polarization capability allows simultaneous transmission and reception on both horizontal and vertical polarizations, doubling the data throughput in MIMO systems. The device is controlled via a serial interface, enabling fast beam steering and calibration. Typical applications include 5G NR base stations, phased-array antennas, satellite communications, and radar systems. Its wide frequency coverage and dual-polarization support make it ideal for massive MIMO and beamforming networks. The device's high integration reduces system complexity and power consumption, making it suitable for dense antenna arrays. When designing with the ADMV4821B, careful attention must be paid to thermal management and RF layout. The device's thermal resistance values are simulated based on JEDEC specifications (JESD51-12), so proper PCB design with adequate ground vias and heat sinking is critical. Additionally, the RF inputs and outputs are single-ended 50-ohm, requiring proper impedance matching to minimize reflections.
ADMV4821C - 24-29.5GHz Dual-Pol Beamformer | Analog Devices
The ADMV4821C is a dual-polarization beamformer from Analog Devices, operating from 24 GHz to 29.5 GHz, covering the n257, n258, and n261 5G NR bands in a single footprint. It integrates 16 selectable TX channels and 16 selectable RX channels, supporting both horizontal and vertical polarization. The device features matched 50-ohm single-ended RF inputs and outputs, simplifying system integration. It is recommended for new designs and is available in a compact BCCZ package, suitable for phased-array antenna systems. A beamformer is a key component in phased-array antenna systems, responsible for controlling the phase and amplitude of signals to steer the antenna beam electronically. It is part of the RF front-end chain, which includes antennas, transceivers, and beamformers. The ADMV4821C is a dual-polarization beamformer, meaning it can handle both horizontal and vertical polarizations simultaneously, effectively doubling the data throughput in MIMO systems. This makes it ideal for 5G base stations and satellite communications. Key features include a wide RF frequency range of 24 GHz to 29.5 GHz, 16 TX and 16 RX channels, dual-polarization support, and matched 50-ohm single-ended interfaces. The device is designed for high linearity and low noise figure, ensuring excellent signal quality. It also offers flexible control interfaces for beam steering, making it suitable for advanced antenna arrays. Technically, the ADMV4821C integrates multiple RF chains with phase shifters and gain amplifiers, all controlled via a serial interface. The dual-polarization architecture allows for 2x2 MIMO operation, enhancing spectral efficiency. The device operates from a single supply voltage and includes on-chip temperature compensation for stable performance across temperature. Typical applications include 5G NR base stations, satellite ground terminals, radar systems, and point-to-point communication links. The wide frequency coverage and dual-polarization capability make it a versatile solution for emerging mmWave applications. When designing with the ADMV4821C, careful attention must be paid to thermal management and RF layout. The device dissipates significant power, and proper heat sinking is essential. Additionally, the RF traces should be impedance-matched to 50 ohms to minimize reflections.
ADSY1100 - 4Tx/4Rx 20GSPS RF Digitizer | Analog Devices
The Analog Devices ADSY1100 is a fully integrated ultra-wideband, multichannel RF transceiver and processing system-on-module (SOM) in a 3UVPX SOSA-aligned format. It is built around ADI's next-generation "Apollo" MXFE product (AD9084), featuring DAC sample rates up to 28 GSPS and ADC sample rates up to 20 GSPS in a 4Tx/4Rx configuration. The module supports RF frequencies from 0.1 GHz to 20 GHz, making it a versatile solution for wideband signal acquisition and generation. An RF digitizer is a system that converts analog RF signals into digital data for processing, often incorporating tuners, ADCs, DACs, and digital signal processing. The ADSY1100 integrates these functions into a compact 3UVPX form factor, enabling rapid system integration for defense, aerospace, and communications applications. As a system-on-module, it combines the RF front-end, data converters, and processing capabilities, reducing development time and system complexity. Key features include 4 transmit and 4 receive channels, support for 100Gb optical data links for high-speed external data transfer, and a VITA 65 slot profile for standardized backplane integration. The module is designed for high-density, multi-channel systems where space and power efficiency are critical. Its wide frequency range and high sample rates enable direct RF sampling, eliminating the need for multiple downconversion stages. The ADSY1100 leverages the AD9084 MXFE, which integrates high-speed DACs and ADCs with digital signal processing blocks. This architecture provides flexibility in configuring the system for various bandwidths and center frequencies. The 100Gb optical links allow seamless data streaming to external processors or FPGAs, supporting real-time signal processing and analysis. Typical applications include electronic warfare, radar systems, satellite communications, and spectrum monitoring. The module's wideband capability and high dynamic range make it suitable for capturing and analyzing complex RF environments. Its SOSA-aligned format ensures interoperability with other SOSA-compliant modules, facilitating system upgrades and maintenance. When designing with the ADSY1100, consider the thermal management requirements due to the high-speed converters and processing elements. Adequate cooling and power supply decoupling are essential for reliable operation. The module's backplane interface follows the VITA 65 standard, ensuring proper mechanical and electrical integration.
ST25R3916B - NFC Initiator with 1.4W Power | STMicroelectronics
The ST25R3916B is a highly integrated NFC initiator and card emulator from STMicroelectronics, designed for high-performance contactless communication. It supports ISO 14443A/B, ISO 15693, and FeliCa protocols, delivering up to 1.4W of output power for extended read range. The device operates from a 2.4V to 5.5V supply and is available in a 32-pin VFQFPN package. An NFC initiator is a device that actively generates an RF field to communicate with passive tags or cards. It is the core component in applications such as point-of-sale terminals, access control readers, and NFC-enabled consumer electronics. The ST25R3916B sits within the NFC reader IC family, which is part of the broader RFID and contactless communication IC category, ultimately falling under wireless communication semiconductors. Key features include a built-in high-efficiency power amplifier that delivers up to 1.4W, dynamic power control for optimal field strength, and advanced anti-collision algorithms for reliable multi-tag reading. The device also integrates a low-power card detection mode, making it suitable for battery-powered applications. Its high sensitivity and noise immunity ensure robust performance in noisy environments. The ST25R3916B employs a sophisticated analog front-end with automatic antenna tuning and calibration, simplifying PCB design and reducing component count. It supports both active and passive load modulation, enabling card emulation and peer-to-peer modes. The device includes a comprehensive set of registers for fine-tuning RF parameters, allowing designers to optimize performance for specific antenna configurations. Typical applications include payment terminals, access control systems, NFC-enabled smart locks, and industrial RFID readers. The high output power extends read range, while the low-power modes preserve battery life in portable devices. The device is also suitable for automotive key fobs and in-vehicle NFC modules. When designing with the ST25R3916B, careful attention must be paid to antenna matching and power supply decoupling. The device requires a clean supply voltage and proper grounding to achieve optimal RF performance. The SPI interface allows easy integration with microcontrollers, and the interrupt output simplifies event-driven firmware design.
ST25R3920B - NFC Reader IC, 13.56MHz, ISO 14443A/B | STMicroelectronics
The ST25R3920B is a high-performance NFC universal reader IC from STMicroelectronics, designed for 13.56 MHz contactless communication. It supports ISO 14443A/B, ISO 15693, and FeliCa protocols, making it a versatile solution for a wide range of NFC applications. The device operates from a 2.4V to 5.5V supply and features an integrated high-power transmitter with programmable output power up to 1.4W, enabling robust communication with passive tags and cards. An NFC reader IC is a specialized radio-frequency integrated circuit that manages the modulation, demodulation, and protocol handling required for near-field communication. It sits at the heart of contactless systems, bridging the digital host interface (typically SPI or I2C) and the analog RF front-end that drives the antenna. In the system hierarchy, the ST25R3920B functions as the physical layer and data-link layer controller, working alongside a host microcontroller (MCU) that runs the application stack. This separation allows designers to implement complex NFC functionality without deep RF expertise. Key features of the ST25R3920B include support for both active and passive peer-to-peer modes, an automatic antenna tuning system, and a low-power field detection mode that enables battery-efficient wake-up. The device also offers a high receiver sensitivity of -70 dBm, ensuring reliable reading of low-signal tags. Its integrated voltage regulator simplifies power supply design, and the SPI interface supports clock speeds up to 10 MHz for fast data transfer. From a technical architecture perspective, the ST25R3920B integrates a highly linear RF front-end with a 13.56 MHz carrier generation circuit, a multi-protocol framing engine, and a flexible FIFO buffer. The device uses a digital demodulator with adaptive filtering to handle various modulation depths and data rates, from 106 kbps to 848 kbps. Its automatic antenna tuning algorithm continuously adjusts the matching network to compensate for environmental detuning, maintaining optimal performance across different antenna designs and operating conditions. Typical applications include point-of-sale terminals, access control systems, NFC-enabled smart locks, and industrial asset tracking. In a POS terminal, the ST25R3920B provides the RF interface for contactless payment cards and mobile wallets, supporting the required EMVCo and NFC Forum compliance. For access control, its low-power field detection allows battery-operated door locks to wake up only when a card is presented, extending battery life. When designing with the ST25R3920B, careful attention must be paid to antenna matching and PCB layout to achieve optimal read range. The device's automatic tuning feature helps, but the antenna coil's inductance and Q-factor must be within the specified range. Additionally, proper decoupling and grounding are essential to minimize noise and ensure stable operation.
STM32WB15CCU6 - 2.4GHz BLE 5.2 Wireless MCU, 320KB Flash | STMicroelectronics
The STMicroelectronics STM32WB15CCU6 is a dual-core wireless microcontroller integrating a 64 MHz Arm Cortex-M4 application processor and a 32 MHz Arm Cortex-M0+ radio processor, designed for Bluetooth Low Energy 5.2 applications. It features 320 KB of flash memory and 48 KB of SRAM, housed in a 48-pin UFQFPN (UFQFPN-48) package with dimensions of 7x7 mm. The device supports a supply voltage range of 1.71V to 3.6V and operates over a temperature range of -40°C to +105°C, making it suitable for industrial and consumer IoT applications. A wireless microcontroller (MCU) is a system-on-chip that integrates a general-purpose microcontroller core with a radio transceiver, enabling wireless communication protocols such as Bluetooth Low Energy, Zigbee, or proprietary sub-GHz protocols. In the system hierarchy, a wireless MCU sits above a standalone MCU and below a full application processor, providing a balance of processing capability, low power consumption, and wireless connectivity. The STM32WB15CCU6 specifically targets Bluetooth Low Energy 5.2, offering a complete solution for connected devices without requiring an external radio chip. Key features of the STM32WB15CCU6 include a 2.4 GHz radio supporting Bluetooth Low Energy 5.2 with a transmit power of up to +6 dBm and a receiver sensitivity of -96 dBm, ensuring robust wireless links. The dual-core architecture allows the Cortex-M0+ to handle the radio stack independently, freeing the Cortex-M4 for application tasks, which improves real-time performance and reduces power consumption. The device also includes a rich set of peripherals, including multiple UART, SPI, I2C interfaces, a 12-bit ADC, and a random number generator, providing flexibility for various sensor and control applications. From a technical depth perspective, the STM32WB15CCU6 leverages ST's advanced 40nm process technology, enabling low power consumption with multiple low-power modes, including a standby mode with a current consumption of only 1.6 µA. The radio architecture includes a dedicated hardware encryption engine supporting AES-128, AES-256, and other algorithms, ensuring secure wireless communication. The device also features a true random number generator (TRNG) and a unique 96-bit ID, enhancing security for IoT applications. Typical applications include smart home devices such as smart locks, sensors, and lighting controls, as well as healthcare wearables, industrial wireless sensor networks, and asset tracking systems. The STM32WB15CCU6's low power consumption and robust wireless performance make it ideal for battery-powered devices that require long operational lifetimes. When designing with this device, ensure proper antenna matching and PCB layout for the 2.4 GHz radio to achieve optimal range and reliability. The device requires a 32.768 kHz crystal for the low-power RTC and a 32 MHz crystal for the radio, and careful attention to power supply decoupling is essential to minimize noise and ensure stable operation.
STM32WB55VEQ6 - 2.4GHz Dual-Core Wireless MCU | STMicroelectronics
The STMicroelectronics STM32WB55VEQ6 is a dual-core wireless microcontroller that integrates a 64 MHz Arm Cortex-M4 application processor with a 32 MHz Arm Cortex-M0+ dedicated to radio processing, enabling concurrent execution of application code and Bluetooth Low Energy (BLE) 5.0, Zigbee 3.0, and OpenThread stacks. It is housed in a 129-ball UFBGA (VQFN-129) package, offering a compact footprint for space-constrained IoT devices. A wireless microcontroller (MCU) is a system-on-chip that combines a general-purpose processor core with a radio transceiver, allowing embedded systems to communicate wirelessly. The STM32WB55VEQ6 belongs to the STM32WB series, which is part of the broader STM32 family of 32-bit Arm Cortex-M microcontrollers. This hierarchy places it within the categories of wireless MCU -> microcontroller -> embedded processor -> semiconductor, providing a clear taxonomy for engineers selecting components for IoT applications. Key features include 1 Mbyte of flash memory and 256 Kbytes of SRAM, providing ample storage for complex application firmware and protocol stacks. The device supports a wide supply voltage range of 1.71V to 3.6V, making it suitable for battery-powered applications. It also integrates a rich set of analog peripherals, including a 12-bit ADC, operational amplifiers, and comparators, as well as digital interfaces such as SPI, I2C, USART, and USB 2.0 FS. The radio supports BLE 5.0 with a data rate of up to 2 Mbps, Zigbee 3.0, and OpenThread, with a typical sensitivity of -96 dBm for BLE. The dual-core architecture allows the Cortex-M0+ to handle all real-time radio protocol processing, while the Cortex-M4 runs the application code, ensuring deterministic wireless performance without burdening the main processor. The device also features a hardware cryptographic accelerator (AES, RSA, ECC) and a true random number generator (TRNG) for secure communication, which is critical for IoT security. Typical applications include smart home devices (e.g., smart locks, sensors, lighting), industrial wireless sensor networks, healthcare wearables, and asset tracking systems. The low-power modes, including Sleep, Stop, and Standby, with current consumption as low as 1.62 uA in Standby mode, extend battery life in portable applications. When designing with this device, ensure proper antenna matching and RF layout to achieve optimal radio performance. The device requires a 32.768 kHz crystal for the RTC and a 32 MHz crystal for the radio, and careful PCB design is essential to minimize interference between the RF section and digital circuitry.
STM32WBA52CEU6 - Arm Cortex-M33 BLE 5.4 MCU | STMicroelectronics
The STM32WBA52CEU6 is a 32-bit Arm Cortex-M33 microcontroller from STMicroelectronics, featuring a 100 MHz core with TrustZone, DSP instructions, and a floating-point unit (FPU). It integrates a 2.4 GHz radio supporting Bluetooth Low Energy (BLE) 5.4, making it ideal for secure IoT and wireless applications. The device comes in a UFQFPN-48 package (7x7 mm) and operates over a supply voltage range of 1.71V to 3.6V. A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32WBA52CEU6 belongs to the STM32WBA series, which is part of the broader STM32 family of 32-bit microcontrollers. This series is optimized for wireless connectivity, combining the Arm Cortex-M33 core with a radio transceiver, enabling secure and low-power communication in IoT devices. Key features include 512 KB of flash memory and 128 KB of SRAM, a rich set of analog and digital peripherals, and advanced security features such as TrustZone, secure boot, and hardware cryptographic accelerators. The BLE 5.4 radio supports long-range, high-throughput, and advertising extensions, with a link budget of up to 105 dB. The device also includes a 12-bit ADC, multiple timers, and communication interfaces like SPI, I2C, USART, and USB. The STM32WBA52CEU6 is built on a low-power process technology, offering multiple low-power modes including Sleep, Stop, and Standby, with typical current consumption as low as 2.2 uA in Standby mode with RTC. The TrustZone technology provides hardware-enforced isolation for secure code execution, making it suitable for applications requiring robust security, such as secure payment, authentication, and firmware protection. Typical applications include smart home devices, industrial sensors, medical wearables, and asset tracking. The integrated BLE radio and security features make it a strong choice for IoT edge nodes that need secure wireless communication. The device supports over-the-air (OTA) firmware updates, enabling remote maintenance and feature updates. When designing with this MCU, ensure proper antenna matching for the BLE radio and follow the layout guidelines in the datasheet to minimize RF interference. The supply voltage should be decoupled with a 100 nF capacitor close to each VDD pin, and the VDDA pin should have a dedicated 1 uF capacitor for analog performance.
STM32WBA55RGV6 - 100MHz Cortex-M33 BLE 5.4 MCU | STMicroelectronics
The STMicroelectronics STM32WBA55RGV6 is a wireless microcontroller (MCU) integrating an Arm Cortex-M33 core running at up to 100 MHz with a 2.4 GHz radio supporting Bluetooth Low Energy (BLE) 5.4, Zigbee, Thread, and proprietary protocols. It is housed in a 28-pin VFQFPN (VG) package with a 4x4 mm footprint, offering a compact solution for connected embedded applications. A wireless MCU is a system-on-chip that combines a general-purpose microcontroller with a radio transceiver, enabling wireless communication in embedded systems. The STM32WBA55RGV6 belongs to the STM32WBA family, which is part of the broader STM32 microcontroller portfolio from STMicroelectronics. This family is designed for low-power, secure, and connected applications, bridging the gap between traditional MCUs and dedicated wireless SoCs. Key features include 512 KB of flash memory and 128 KB of SRAM, providing ample space for application code and data. The device supports a wide supply voltage range of 1.71V to 3.6V, making it suitable for battery-powered designs. It integrates a rich set of peripherals, including multiple UART, SPI, I2C, ADC, timers, and GPIOs, along with advanced security features such as TrustZone, secure boot, and hardware cryptographic accelerators (AES, RSA, ECC). The radio achieves a sensitivity of -96 dBm for BLE, ensuring reliable communication. The STM32WBA55RGV6 is built on a low-power process technology, with multiple low-power modes (Sleep, Stop, Standby) to minimize energy consumption. The Arm Cortex-M33 core with TrustZone provides hardware-enforced isolation for secure applications, while the radio supports concurrent multi-protocol operation, enabling seamless switching between BLE and Zigbee/Thread. This makes it ideal for IoT nodes, smart home devices, and industrial sensors. Typical applications include smart home automation (e.g., smart locks, sensors), wearable health monitors, industrial wireless sensor networks, and asset tracking. The device's low power consumption and robust security features make it well-suited for battery-operated devices that require secure wireless connectivity. When designing with this device, pay attention to antenna matching and RF layout to achieve optimal radio performance. The device requires a 32 MHz crystal for the radio and a 32.768 kHz crystal for low-power timing. Proper decoupling of the supply pins and a clean ground plane are essential for reliable operation.
STM32WL55CCU6 - Dual-core Arm Cortex-M4/M0+ LoRa SoC | STMicroelectronics
The STMicroelectronics STM32WL55CCU6 is a wireless system-on-chip (SoC) that integrates a dual-core Arm Cortex-M4 and Cortex-M0+ processor with a sub-GHz radio supporting LoRa, (G)FSK, (G)MSK, and BPSK modulations. It is housed in a 48-pin UFQFPN package (7x7 mm) and operates over a supply voltage range of 1.8V to 3.6V. The device features 256 KB of flash memory and 64 KB of SRAM, making it suitable for battery-powered IoT applications. A wireless MCU is a microcontroller that integrates a radio transceiver on the same chip, enabling wireless communication without external RF components. The STM32WL55CCU6 belongs to the STM32WL series, which is part of the broader STM32 family of 32-bit microcontrollers. This SoC combines the processing power of an Arm Cortex-M4 core with the energy efficiency of a Cortex-M0+ core, allowing for flexible task partitioning and low-power operation. Key features include a maximum CPU frequency of 48 MHz for both cores, a sub-GHz radio with sensitivity down to -137 dBm (LoRa), and support for LoRaWAN and Sigfox protocols. The device also includes a rich set of peripherals such as 12-bit ADC, DAC, comparators, timers, SPI, I2C, USART, and a random number generator. The integrated radio eliminates the need for an external transceiver, reducing BOM cost and PCB area. The STM32WL55CCU6 is built on ST's low-power process technology, offering multiple low-power modes including Sleep, Stop, and Standby, with current consumption as low as 1.62 uA in Standby mode with RTC. The dual-core architecture allows the Cortex-M0+ to handle radio communication while the Cortex-M4 runs application code, optimizing power and performance. Typical applications include smart agriculture sensors, smart metering, asset tracking, smart city infrastructure, and industrial monitoring. The sub-GHz radio provides long-range communication with low power consumption, making it ideal for battery-operated devices that need to transmit data over kilometers. When designing with this device, ensure proper antenna matching and RF layout to achieve optimal radio performance. The device supports a wide operating temperature range of -40C to +85C, suitable for outdoor and industrial environments.

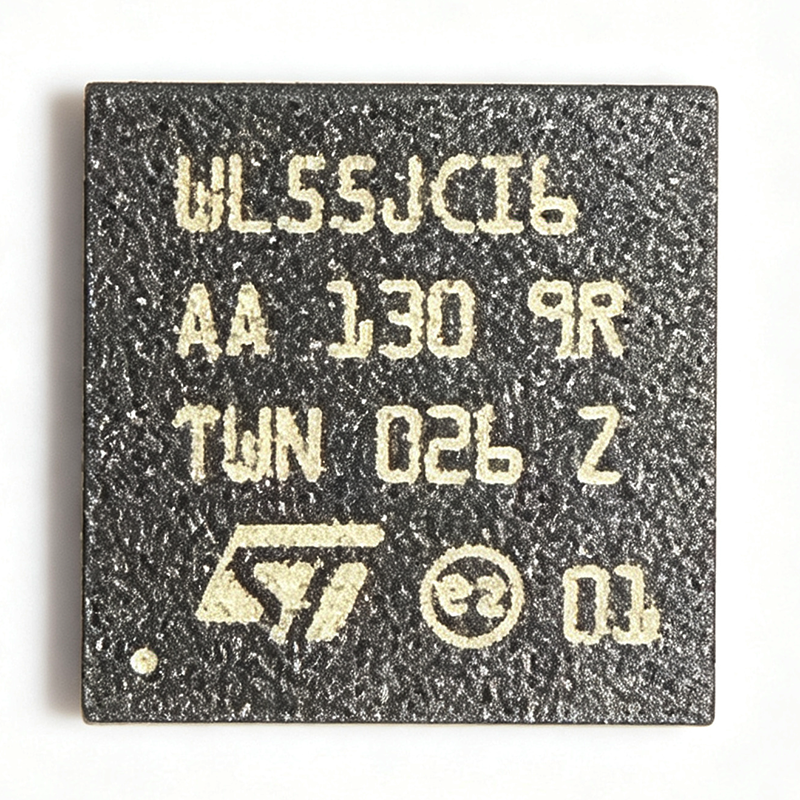

STM32WL55JCI6 - Dual-core Arm Cortex-M4/M0+ LoRa SoC | STMicroelectronics
The STMicroelectronics STM32WL55JCI6 is a wireless system-on-chip (SoC) integrating a dual-core Arm Cortex-M4 and Cortex-M0+ processor with a sub-GHz radio supporting LoRa, (G)FSK, (G)MSK, and BPSK modulations. It operates over a frequency range of 150 MHz to 960 MHz, making it suitable for long-range, low-power IoT applications. The device is housed in a UFBGA-73 package (7x7 mm) and is designed for battery-powered devices requiring extended range and low power consumption. A wireless MCU (Microcontroller Unit) is a single-chip solution that combines a microcontroller core with a radio transceiver, enabling wireless communication without external RF components. The STM32WL55JCI6 belongs to the STM32WL family, which is part of the broader STM32 microcontroller portfolio from STMicroelectronics. This integration reduces system cost, board space, and design complexity compared to discrete MCU and radio solutions. Key features include a 64 MHz Arm Cortex-M4 application processor with FPU and DSP instructions, a 48 MHz Cortex-M0+ dedicated to radio protocol management, 256 KB of flash memory, and 64 KB of SRAM. The radio supports LoRa modulation with sensitivity down to -137 dBm and output power up to +22 dBm, enabling communication over several kilometers in open field. The device also includes a rich set of peripherals: 12-bit ADC, DAC, comparators, op-amps, multiple UART/SPI/I2C interfaces, and a true random number generator (TRNG) for security. The STM32WL55JCI6 is built on a low-power process technology, offering multiple low-power modes including Sleep, Stop, and Standby, with current consumption as low as 1.62 uA in Standby mode with RTC. The radio can achieve RX current of 4.82 mA and TX current of 87 mA at +14 dBm, making it ideal for battery-operated sensors. The device supports a wide supply voltage range of 1.8V to 3.6V and operates over -40C to +85C. Typical applications include smart agriculture (soil moisture sensors, weather stations), smart metering (gas, water, electricity), asset tracking, industrial monitoring, and smart city infrastructure. The long-range capability and low power consumption make it a preferred choice for LPWAN (Low-Power Wide-Area Network) deployments. When designing with this device, pay attention to antenna matching and RF layout to achieve optimal range. The dual-core architecture allows the M0+ core to handle the radio stack while the M4 core runs application code, improving real-time performance and power efficiency. Use the STM32CubeWL software package for rapid development.
STM32WLE5C8 - 32-bit Arm Cortex-M4 LoRa SoC | STMicroelectronics
The STM32WLE5C8 is a 32-bit Arm Cortex-M4 microcontroller with integrated LoRa transceiver from STMicroelectronics, designed for long-range, low-power wireless applications. It operates at a maximum CPU frequency of 48 MHz and features 256 KB of flash memory and 64 KB of SRAM. The device is housed in a 48-pin UFQFPN package (7x7 mm) and supports a supply voltage range of 1.8V to 3.6V. A microcontroller unit (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. It contains a processor core, memory, and programmable input/output peripherals. The STM32WLE5C8 belongs to the STM32WL family, which combines an MCU with a sub-GHz radio transceiver, enabling single-chip solutions for IoT devices. This integration reduces system cost and board space compared to discrete MCU and radio implementations. Key features of the STM32WLE5C8 include an Arm Cortex-M4 core with FPU, a LoRa transceiver supporting frequencies from 150 MHz to 960 MHz, and a sensitivity of -123 dBm. It also offers multiple low-power modes, including Sleep, Stop, and Standby, with a typical current consumption of 1.4 uA in Standby mode. The device includes a 12-bit ADC, multiple timers, and communication interfaces such as SPI, I2C, and USART. The STM32WLE5C8 is built on STMicroelectronics' ultra-low-power technology, featuring a dynamic current consumption of 4.6 mA in active mode at 48 MHz. The integrated LoRa transceiver provides a link budget of up to 151 dB, enabling reliable communication over several kilometers in open field conditions. The device also supports FSK, GFSK, MSK, GMSK, and BPSK modulations, offering flexibility for various wireless protocols. Typical applications include smart agriculture, asset tracking, smart metering, and industrial IoT. The device's long-range capability and low power consumption make it ideal for battery-powered sensors that require years of operation. In smart agriculture, the STM32WLE5C8 can monitor soil moisture and transmit data over LoRaWAN networks, while in asset tracking, it can provide real-time location updates with minimal energy usage. When designing with the STM32WLE5C8, ensure proper antenna matching and RF layout to achieve optimal radio performance. The device requires a 32 MHz crystal for the radio and a 32.768 kHz crystal for the RTC. Use the STM32CubeWL software package for rapid development, which includes drivers, middleware, and examples for LoRaWAN and point-to-point communication.
TDA7708CBTR - AM/FM Radio Tuner IC | STMicroelectronics
The TDA7708CBTR is a high-performance AM/FM radio tuner IC from STMicroelectronics, designed for automotive and consumer radio applications. It integrates a complete radio receiver chain including RF front-end, mixer, IF filter, demodulator, and audio processing in a single chip. The device operates over a wide supply voltage range and supports both AM and FM bands with excellent sensitivity and selectivity. A radio tuner IC is a semiconductor device that receives radio frequency signals, selects the desired channel, and demodulates the audio or data content. It is a key component in car radios, portable radios, and other broadcast receivers. The TDA7708CBTR belongs to the family of integrated tuner ICs that combine RF, analog, and digital signal processing to deliver high-quality audio output. Key features of the TDA7708CBTR include support for FM frequency range from 76 MHz to 108 MHz and AM frequency range from 150 kHz to 30 MHz, low power consumption, and I2C control interface for tuning and configuration. The device also includes advanced noise suppression and multipath detection algorithms, ensuring clear reception in challenging environments. The TDA7708CBTR uses a low-IF architecture with digital signal processing, providing superior adjacent channel rejection and image rejection compared to traditional analog tuners. It integrates a phase-locked loop (PLL) for precise frequency synthesis and includes automatic gain control (AGC) to handle varying signal strengths. The device is housed in a compact VFQFPN-48 package, suitable for space-constrained automotive head units. Typical applications include car radio systems, portable radios, and home audio receivers. The TDA7708CBTR is designed to meet automotive quality standards, making it suitable for harsh environments with wide temperature ranges. When designing with the TDA7708CBTR, ensure proper PCB layout with adequate grounding and shielding to minimize interference. The I2C interface allows easy integration with microcontrollers for channel selection and volume control. The device requires a clean power supply and appropriate decoupling capacitors for optimal performance.
