BUF634P vs BUF634T Comparison
Detailed side-by-side comparison of BUF634P by Texas Instruments and BUF634T by Texas Instruments. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Texas Instruments

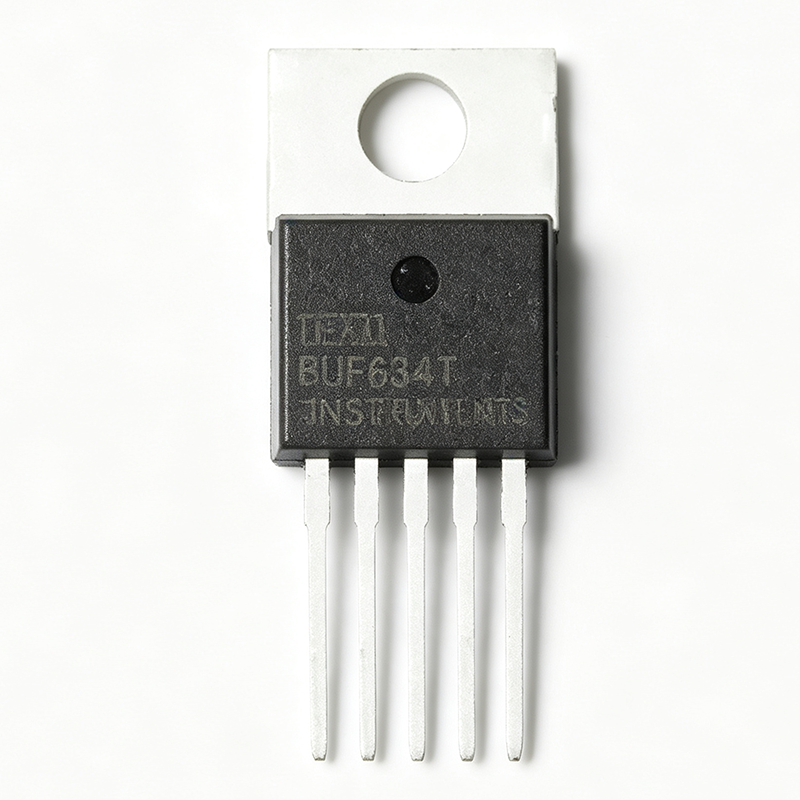

BUF634T - 250mA High-Speed Buffer, 2000V/us | Texas Instruments
BUF634T β ActiveSpecification Comparison
| Parameter | BUF634P | BUF634T |
|---|---|---|
| Brand | Texas Instruments | Texas Instruments |
| Category | Amplifier ICs | Amplifier ICs |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $5.40 | $9.40 |
| Function | High-speed unity-gain buffer | Unity-gain high-speed buffer amplifier |
| Number of Channels | 1 | β |
| Output Current | 250 mA | 250 mA |
| Slew Rate | 2000 V/us | 2000 V/us |
| Bandwidth (pin-selected) | 180 MHz (BW to V+) / 30 MHz (BW open) | β |
| Quiescent Current | 1.5 mA (30 MHz BW mode) | 1.5 mA (30 MHz BW mode) |
| Supply Voltage Range | +/-2.25 V to +/-18 V | Up to +/-18 V |
| Gain | 1 V/V (unity, open-loop buffer) | β |
| Protection Features | Internal current limit, thermal shutdown | Internal current limit, thermal shutdown |
| Package | 8-PDIP (P) | TO-220-5 |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | [DATA_NEEDED: operating temperature range] | [DATA_NEEDED: operating temperature range] |
| Input Offset Voltage | [DATA_NEEDED: input offset voltage] | β |
| Output Resistance | [DATA_NEEDED: output resistance] | β |
| RoHS Status | [DATA_NEEDED: RoHS status] | Compliant |
| Upgrade Path | BUF634A (higher slew 3750 V/us, 210 MHz BW, 8.5 mA IQ) | β |
| Number of Circuits | β | 1 |
| Bandwidth | β | 180 MHz (pin-selected); 30 MHz low-power mode |
| Input Type | β | Bipolar |
| Topology | β | Open-loop buffer (usable inside op amp feedback loop) |
| Upgraded Version | β | BUF634A (higher slew rate 3750 V/us, 210 MHz BW) |
