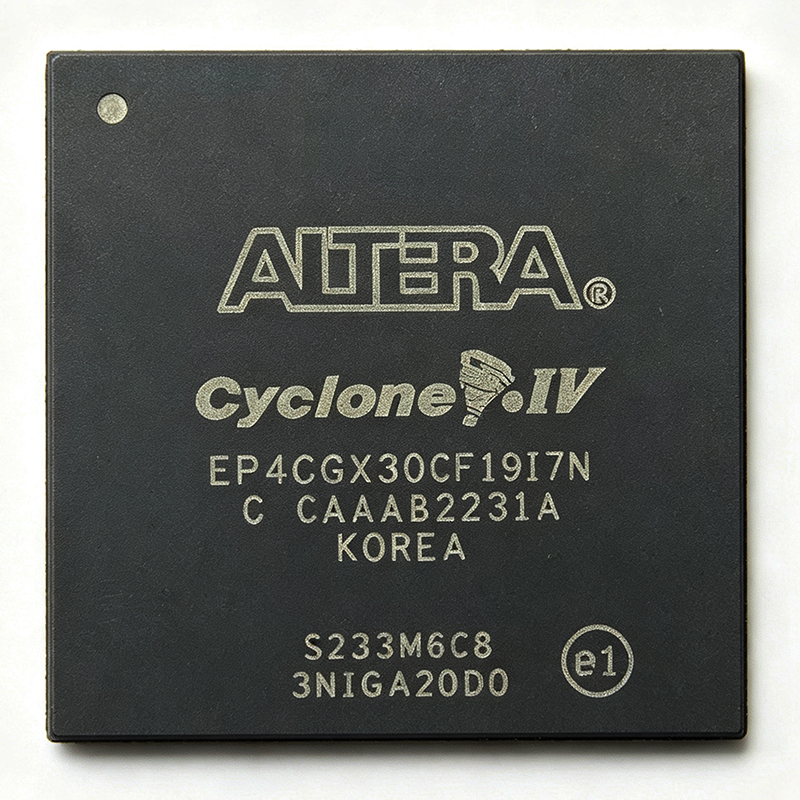

EP4CGX30CF19I7N vs EP4CGX22CF19C7 Comparison
Detailed side-by-side comparison of EP4CGX30CF19I7N by Intel and EP4CGX22CF19C7 by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Intel
EP4CGX22CF19C7
EP4CGX22CF19C7 - Cyclone IV GX FPGA, 21280 LEs, 324-FBGA | Intel
EP4CGX22CF19C7 β ActiveSpecification Comparison
| Parameter | EP4CGX30CF19I7N | EP4CGX22CF19C7 |
|---|---|---|
| Brand | Intel | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Active |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $76.40 | $19.20 |
| Series | Cyclone IV GX | EP4CGX22 |
| Family | Cyclone IV (GX variant with transceivers) | Cyclone IV GX |
| Logic Elements (LE) | 29,440 | β |
| Total Memory Bits | 1,105,920 bits | β |
| Number of I/O | 150 user I/O | β |
| Number of Transceivers | 4 (3.125 Gbps) | β |
| Number of Logic Array Blocks (LABs) | [DATA_NEEDED: LAB count] | β |
| DSP Blocks (18x18 Multipliers) | 66 | β |
| PLLs | 4 | 2 |
| Process Technology | 60 nm low-power | 60 nm low-power CMOS |
| Core Voltage | 1.2 V (typical), 1.1 V variant | β |
| Package | 324-LBGA / FBGA | 324-LBGA / 324-FBGA (F19) |
| Mounting Type | Surface Mount | Surface Mount (FBGA) |
| Operating Temperature (Industrial) | -40C to +100C (TJ) | β |
| Speed Grade | 7 | C7 |
| RoHS Status | Compliant | Compliant |
| Configuration Method | Serial / Parallel flash via Quartus | β |
| Device Type | β | FPGA (Field Programmable Gate Array) |
| Logic Elements | β | 21280 |
| Logic Array Blocks (LABs) | β | 1330 |
| Embedded Memory | β | 774144 bits |
| Embedded 18x18 Multipliers | β | 80 |
| User I/O Count | β | 150 |
| Operating Temperature | β | 0C to +85C (Commercial) |
| Supply Voltage Core | β | 1.2 V |
| Transceivers | β | Yes, Cyclone IV GX transceiver block up to 3.125 Gbps |
| Configuration Modes | β | JTAG, AS, PS, FPP |
