EPM3128ATI10010N vs EPM3128ATC100-7N Comparison
Detailed side-by-side comparison of EPM3128ATI10010N by Altera and EPM3128ATC100-7N by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Altera
EPM3128ATI10010N
EPM3128ATI10010N - MAX 3000A CPLD 128MC 100TQFP | Altera
EPM3128ATI10010N β ActiveIntel

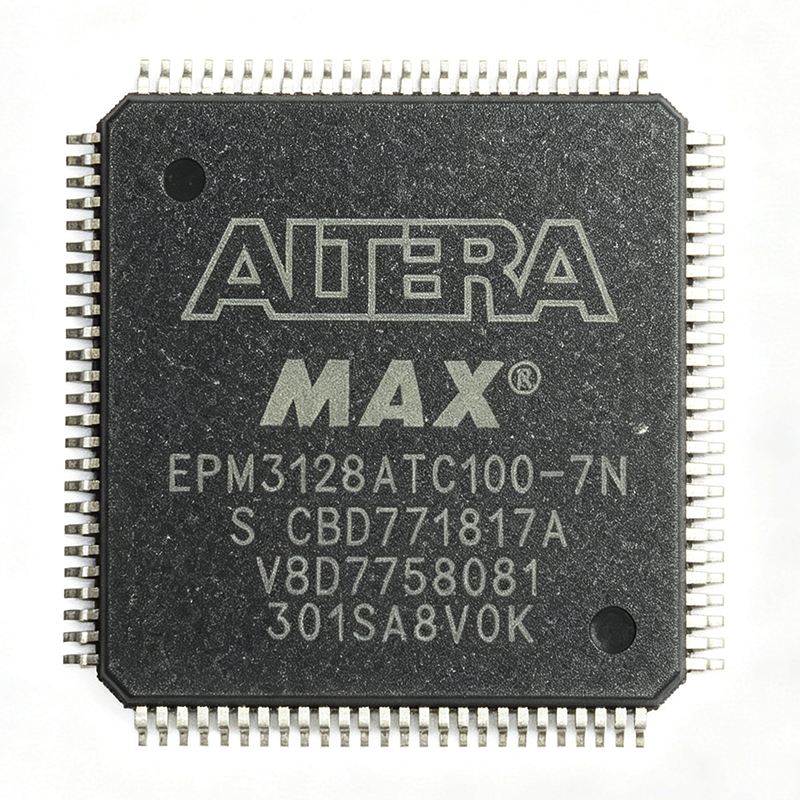

EPM3128ATC100-7N - MAX 3000A 128-Macrocell CPLD, 7.5 ns, TQFP-100 | Intel (Altera)
EPM3128ATC100-7N NrndSpecification Comparison
| Parameter | EPM3128ATI10010N | EPM3128ATC100-7N |
|---|---|---|
| Brand | Altera | Intel |
| Category | FPGA & CPLD | FPGA & CPLD |
| Lifecycle Status | Active | Nrnd |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $9.10 | $3.52 |
| Family | MAX 3000A | MAX 3000A |
| Device Type | CPLD (Complex Programmable Logic Device) | β |
| Macro Cells | 128 | 128 |
| Logic Array Blocks (LABs) | 8 | β |
| Usable Gates | 2,500 | Up to 10,000 |
| User I/Os | 80 | β |
| Number of Pins | 100 | β |
| Package | 100-pin TQFP | TQFP-100 (100-pin TQFP, fine-line BGA-256 noted in third-party listings) |
| Mounting Type | Surface Mount | Surface Mount |
| Propagation Delay (tPD) | 10 ns | 7.5 ns |
| Maximum Internal Frequency | 98 MHz | β |
| Core Supply Voltage | 3.0 V to 3.6 V | β |
| I/O Bank Voltage | 1.8 V / 2.5 V / 3.3 V | β |
| Operating Temperature | 0 C to +70 C (commercial) | 0C to +70C (Commercial) |
| Process Technology | CMOS EEPROM | β |
| Programming Interface | JTAG (IEEE 1149.1) ISP | β |
| PCI Compliance | Yes (speed grades -5/-6/-7/-10) | β |
| RoHS Status | unknown | [DATA_NEEDED: RoHS status] |
| Number of I/Os | β | 80 |
| Number of Logic Array Blocks (LABs) | β | [DATA_NEEDED: LAB count] |
| Counter Frequency (max) | β | 227.3 MHz |
| Supply Voltage - Core | β | 3.3 V |
| I/O Interface Levels | β | 5.0 V / 3.3 V / 2.5 V (MultiVolt I/O) |
| In-System Programmability | β | Yes (IEEE 1532 / JTAG) |
| Program Memory Type | β | EEPROM (non-volatile) |
| Logic Family | β | CMOS |
| Speed Grade | β | -7 |
