AD7175-8BCPZ - 24-Bit 250kSPS Sigma-Delta ADC | Analog Devices
MPN: AD7175-8BCPZ ✓ Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $34.7 | $34.70 |
| 10 | $31.23 | $312.30 |
| 100 | $27.76 | $2,776.00 |
| 500 | $24.29 | $12,145.00 |
| 1,000 | $20.82 | $20,820.00 |
Drop-in alternatives for AD7175-8BCPZ — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool — Select alternative parts for side-by-side comparison:

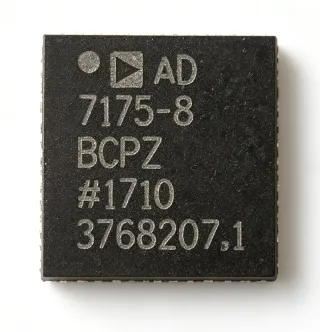

AD7175-8BCPZ-RL7
✅ Drop-In✓ In Stock
$8.32 / Unit
View Datasheet →AD7175-8BCPZ-RL7
✅ Drop-In✓ In Stock
$8.32 / Unit
View Datasheet →AD7175-8BCPZ Maximum Ratings & Electrical Characteristics
| Resolution | 24 Bit |
| Number of Channels | 8 Differential / 16 Single-Ended |
| Output Data Rate | 250 kSPS |
| Channel Scan Rate | 50 kSPS (20 µs) for fully settled data |
| SNR | 85 dB at 250 kSPS |
| No Missing Codes | 24-bit |
| Analog Supply Voltage | 2.5V to 5.5V |
| Digital Supply Voltage | 2V to 5.5V |
| Internal Reference | 2.5V precision |
| Input Type | True rail-to-rail buffers |
| Digital Filter | sinc5 + sinc1 |
| Interface | 4-wire SPI |
| Package | 40-LFCSP-WQ (6x6 mm) |
| Operating Temperature Range | -40°C to +105°C |
| Mounting Type | Surface Mount |
| RoHS Status | Compliant |
AD7175-8BCPZ Pin Configuration
| Pin 1 | AVDD — Analog power supply |
| Pin 2 | AIN0 — Analog input 0 |
| Pin 3 | AIN1 — Analog input 1 |
| Pin 4 | AIN2 — Analog input 2 |
| Pin 5 | AIN3 — Analog input 3 |
| Pin 6 | AIN4 — Analog input 4 |
| Pin 7 | AIN5 — Analog input 5 |
| Pin 8 | AIN6 — Analog input 6 |
| Pin 9 | AIN7 — Analog input 7 |
| Pin 10 | AVSS — Analog ground |
| Pin 11 | REF+ — Positive reference input |
| Pin 12 | REF- — Negative reference input |
| Pin 13 | DVDD — Digital power supply |
| Pin 14 | DGND — Digital ground |
| Pin 15 | SCLK — Serial clock input |
| Pin 16 | DIN — Serial data input |
| Pin 17 | DOUT — Serial data output |
| Pin 18 | CS — Chip select (active low) |
| Pin 19 | SYNC — Synchronization input |
| Pin 20 | RESET — Reset input (active low) |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this component. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
AD7175-8BCPZ is suitable for 6 applications: Process Control (PLC/DCS Analog Input Modules), Weigh Scales, Temperature and Pressure Measurement, Medical Instrumentation, Test and Measurement Equipment, Industrial Automation.
Process Control (PLC/DCS Analog Input Modules)
The AD7175-8BCPZ is ideal for PLC/DCS analog input modules due to its 24-bit resolution, 250 kSPS output data rate, and 8 differential/16 single-ended inputs. It provides fast settling (20 µs) for multiplexed channels, enabling high-throughput scanning of multiple sensors. The integrated true rail-to-rail buffers allow direct connection to high-impedance sensors without external conditioning, simplifying front-end design. Its per-channel configurability for gain, filter, and reference settings makes it versatile for various industrial signal types, such as 4-20 mA loops and thermocouples. The SPI interface ensures easy integration with industrial microcontrollers, and the wide supply voltage range (2.5V to 5.5V) accommodates common industrial power rails.
Recommended
Weigh Scales
The AD7175-8BCPZ excels in weigh scale applications due to its 24-bit no missing codes and low noise performance, ensuring accurate weight measurements. The fast settling time (20 µs) allows rapid multi-channel scanning, which is beneficial for checkweighers that process many items per minute. The integrated 2.5V reference and true rail-to-rail buffers simplify the load cell interface, reducing external component count. The SPI interface enables straightforward connection to a microcontroller for digital filtering and calibration. Its wide supply voltage range supports battery-powered portable scales as well as industrial bench scales. The device's per-channel configuration allows different gains for different load cells, optimizing dynamic range.
Recommended
Temperature and Pressure Measurement
The AD7175-8BCPZ is well-suited for temperature and pressure measurement systems that require high accuracy and multiple channels. Its 24-bit resolution and 85 dB SNR ensure precise conversion of small sensor signals, such as those from thermocouples, RTDs, and pressure transducers. The device's fast settling (20 µs) enables rapid scanning of multiple sensors, making it ideal for data acquisition systems in industrial and laboratory settings. The integrated true rail-to-rail buffers allow direct connection to high-impedance sensors, while the per-channel gain and filter settings accommodate different sensor types. The SPI interface simplifies integration with microcontrollers for linearization and compensation algorithms. The wide operating temperature range (-40°C to +105°C) ensures reliable operation in harsh environments.
Recommended
Medical Instrumentation
The AD7175-8BCPZ is suitable for medical instrumentation such as patient monitoring and diagnostic equipment, where high precision and reliability are critical. Its 24-bit resolution and low noise ensure accurate measurement of physiological signals like ECG, EEG, and blood pressure. The fast settling time (20 µs) allows multiplexed acquisition of multiple channels, which is essential for multi-parameter monitors. The integrated true rail-to-rail buffers and 2.5V reference reduce external components, saving board space in compact medical devices. The SPI interface enables seamless integration with medical-grade microcontrollers. The device's wide supply voltage range (2.5V to 5.5V) supports battery-powered portable monitors. Its extended temperature range (-40°C to +105°C) ensures reliable operation in clinical environments.
Recommended
Test and Measurement Equipment
The AD7175-8BCPZ is ideal for test and measurement equipment such as data loggers, spectrum analyzers, and precision multimeters. Its 24-bit resolution and 250 kSPS output data rate enable high-speed, high-accuracy data acquisition. The fast settling time (20 µs) allows rapid channel scanning, making it suitable for multi-channel data loggers. The integrated true rail-to-rail buffers and 2.5V reference simplify front-end design, while the per-channel configurability allows optimization for different signal types. The SPI interface ensures easy integration with FPGAs or DSPs for real-time processing. The wide supply voltage range (2.5V to 5.5V) accommodates various test equipment power architectures. Its robust design and extended temperature range make it reliable for benchtop and portable instruments.
Recommended
Industrial Automation
The AD7175-8BCPZ is well-suited for industrial automation systems that require precise analog measurement across multiple channels. Its 24-bit resolution and 250 kSPS output data rate enable high-speed, accurate data acquisition for motor control, robotics, and factory automation. The fast settling time (20 µs) allows rapid scanning of sensors, improving system throughput. The integrated true rail-to-rail buffers and 2.5V reference reduce external components, simplifying design and improving reliability. The per-channel configurability allows different sensors (e.g., temperature, pressure, position) to be connected directly, reducing signal conditioning complexity. The SPI interface integrates easily with industrial PLCs and microcontrollers. The wide supply voltage range (2.5V to 5.5V) and extended temperature range (-40°C to +105°C) ensure robust operation in harsh industrial environments.
Recommended
Recommended Products Summary
Engineering reference data for AD7175-8BCPZ — comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | AD7175-8BCPZ-RL7 | AD7175-8BCPZ-RL | AD7177-2BRUZ | AD7172-2BRUZ | ADS1262 | ADS131M08 |
|---|---|---|---|---|---|---|---|
| Package | 40-LFCSP-WQ (6x6) | 40-LFCSP-WQ (6x6) - same | 40-LFCSP-WQ (6x6) - same | 24-Lead TSSOP | 24-Lead TSSOP | TSSOP-28 | TSSOP-28 |
| Brand | Analog Devices | Analog Devices | Analog Devices | Analog Devices | Analog Devices | Texas Instruments | Texas Instruments |
| Resolution | 24 Bit | 24 Bit | 24 Bit | 24 Bit | 24 Bit | 24 Bit | 24 Bit |
| Max Output Data Rate | 250 kSPS | 250 kSPS | 250 kSPS | 10 kSPS | 31.25 kSPS | 38 kSPS | 64 kSPS |
| Number of Channels | 8 Differential / 16 Single-Ended | 8 Differential / 16 Single-Ended | 8 Differential / 16 Single-Ended | 2 Differential / 4 Single-Ended | 2 Differential / 4 Single-Ended | 10 Single-Ended / 5 Differential | 8 Single-Ended |
| SNR | 85 dB at 250 kSPS | 85 dB at 250 kSPS | 85 dB at 250 kSPS | 85 dB at 10 kSPS | 85 dB at 31.25 kSPS | 85 dB at 38 kSPS | 85 dB at 64 kSPS |
| Internal Reference | Yes (2.5V) | Yes (2.5V) | Yes (2.5V) | Yes (2.5V) | Yes (2.5V) | Yes (2.5V) | Yes (1.2V) |
| Interface | 4-wire SPI | 4-wire SPI | 4-wire SPI | 4-wire SPI | 4-wire SPI | SPI | SPI |
| Supply Voltage (Analog) | 2.5V to 5.5V | 2.5V to 5.5V | 2.5V to 5.5V | 2.5V to 5.5V | 2.5V to 5.5V | 4.75V to 5.25V | 3V to 3.6V |
Key Differentiators
- Higher channel count and speed (vs AD7172-2BRUZ)
- Faster settling time (vs ADS1262)
- True rail-to-rail input buffers (vs ADS131M08)
Design Notes
Decouple the AVDD and DVDD supplies with 10 µF and 0.1 µF capacitors placed as close to the pins as possible. Use separate analog and digital ground planes, connecting them at a single point to minimize noise coupling. The wide supply range (2.5V to 5.5V) allows flexibility, but ensure stable, low-noise supplies for optimal ADC performance.
For best performance, keep analog input traces short and shielded from digital noise. Use a solid ground plane under the ADC and route digital signals away from analog inputs. Bypass the REF+ and REF- pins with 10 µF capacitors to minimize reference noise. Follow the layout guidelines in the AD7175-8 datasheet for optimal results.
Avoid exceeding the absolute maximum ratings on any pin. Ensure the input voltage does not exceed the supply rails. When using the internal reference, ensure adequate decoupling to prevent noise. For multiplexed operation, account for settling time (20 µs) to avoid crosstalk between channels. Use the SYNC pin to synchronize multiple ADCs if needed.
Compliance Information
RoHS compliance confirmed from distributor data. Other compliance details not specified in provided data.
