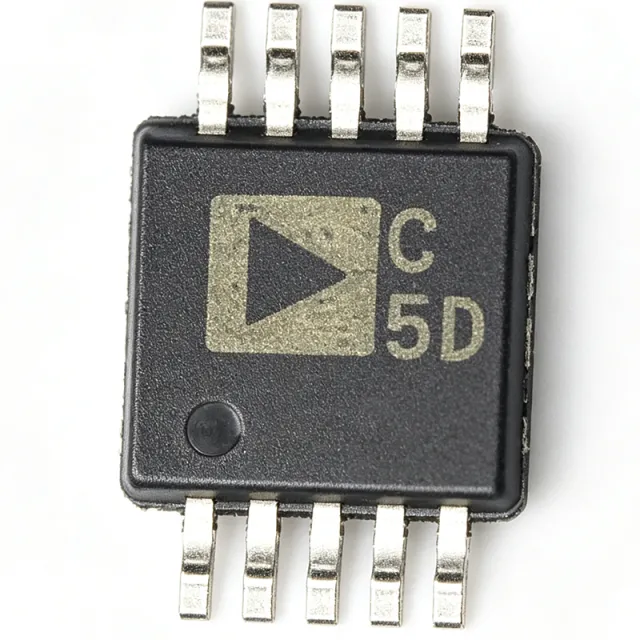

AD7980BRMZRL7 - 16-Bit 1 MSPS SAR ADC | Analog Devices

Name: AD7980BRMZRL7
Brand: Analog Devices
Price: 16.8636 USD
Availability: InStock

MPN: AD7980BRMZRL7 ✓ Active

In Stock Ships in 1-3 business days

2.5 V to 5.5 V Vdss 10-lead MSOP Package

From $16.8636 USD / Unit

MOQ: 1 |

Price updated: 2026-08-22

Volume Pricing

Qty	Unit Price	Extended
1	$28.9091	$28.91
10	$20.8788	$208.79
100	$18.4697	$1,846.97
500	$17.6667	$8,833.35
1,000	$16.8636	$16,863.60

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for AD7980BRMZRL7 — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

AD7980BRMZ

Analog Devices

16 bits · 1 MSPS · SAR (PulSAR) · 1 · Pseudo-differential · 0 V to VREF · External, independent of VDD · ±0.6 LSB

✓ In Stock

$16.8636 / Unit

View Datasheet →

AD7980ARMZRL7

Analog Devices

16 Bit · 1 MSPS · 1 · Pseudo-Differential · SAR · 2.5 V · 7 mW at 1 MSPS · ±2.5 LSB

✓ In Stock

$9.2273 / Unit

View Datasheet →

AD7980BCPZ-RL7

Analog Devices

16 bits · 1 MSPS · 1 · Pseudo-differential · SPI · SAR · External · 2.3 V ~ 5.5 V

✓ In Stock

$18 / Unit

View Datasheet →

AD7982BRMZ

18-bit resolution, pin-compatible upgrade

📋 Reference alternative (not in catalog)

ADS8881IDGSR

Cross-brand, 16-bit 1 MSPS SAR ADC, pin-compatible

📋 Reference alternative (not in catalog)

MAX11166

Cross-brand, 16-bit 500 kSPS SAR ADC, pin-compatible

📋 Reference alternative (not in catalog)

AD7980BRMZRL7 Maximum Ratings & Electrical Characteristics

Resolution	16 bit
Sampling Rate	1 MSPS
Number of Inputs	1
Input Type	Pseudo-Differential
Architecture	SAR
Supply Voltage	2.5 V to 5.5 V
Reference Voltage	External, independent of VDD
Digital Interface	SPI-compatible, 3-wire, daisy-chain capable
Logic Voltage Range	1.8 V to 5 V
Package	10-lead MSOP
Mounting Type	Surface Mount
Operating Temperature Range	-40°C to +125°C
Power Consumption	Scales linearly with throughput
RoHS Status	Compliant
MSL Level	1 (Unlimited)

AD7980BRMZRL7 Pin Configuration

Pin 1	VDD — Power supply, 2.5 V to 5.5 V
Pin 2	GND — Ground
Pin 3	REF — External reference voltage input
Pin 4	IN+ — Positive analog input
Pin 5	IN- — Negative analog input
Pin 6	SCK — Serial clock input
Pin 7	SDI — Serial data input for daisy-chain
Pin 8	SDO — Serial data output
Pin 9	CNV — Convert input, initiates conversion
Pin 10	BUSY — Busy indicator output

Safe Operating Area (SOA) & Thermal Characteristics

No official SOA curve available for this component. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.

Typical Applications

AD7980BRMZRL7 is suitable for 6 applications: High-Speed Data Acquisition, Industrial Automation, Medical Instrumentation, Portable Instrumentation, Test and Measurement, Battery-Powered Devices.

🔧

High-Speed Data Acquisition

The AD7980BRMZRL7's 1 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition systems. Its SAR architecture provides low latency and high accuracy, essential for capturing fast-changing signals. The SPI interface simplifies connection to microcontrollers and DSPs, enabling rapid data transfer. Power scaling with throughput allows efficient operation in portable DAQ devices.

Recommended

AD7980BCPZ-RL7 · Analog Devices AD7982BRMZ (Higher resolution 18-bit pin-compatible upgrade)

🏭

Industrial Automation

In industrial automation, the AD7980BRMZRL7 provides precise analog-to-digital conversion for process control, motor control, and monitoring systems. Its 16-bit resolution ensures accurate measurement of sensor signals, while the 1 MSPS throughput supports real-time control loops. The wide operating temperature range and robust design make it suitable for harsh industrial environments. The SPI interface allows easy integration with industrial microcontrollers.

Recommended

AD7980ARMZRL7 · Analog Devices AD7980BRMZ · Analog Devices

💊

Medical Instrumentation

The AD7980BRMZRL7 is well-suited for medical instrumentation such as patient monitoring, diagnostic equipment, and imaging systems. Its low power consumption and high accuracy are critical for battery-operated devices. The pseudo-differential input helps reject common-mode noise, improving signal integrity in noisy medical environments. The small MSOP package saves board space in compact medical devices.

Recommended

AD7980BCPZ-RL7 · Analog Devices AD7982BRMZ (18-bit resolution for higher precision diagnostic applications)

📱

Portable Instrumentation

For portable instrumentation, the AD7980BRMZRL7 offers a balance of performance and power efficiency. Its power consumption scales with throughput, allowing designers to optimize battery life by reducing sampling rate when full speed is not needed. The 2.5 V to 5.5 V supply range accommodates various battery chemistries. The SPI interface and small package make it easy to integrate into handheld devices.

Recommended

AD7980BRMZ · Analog Devices AD7980ARMZRL7 · Analog Devices

🔧

Test and Measurement

The AD7980BRMZRL7 is used in test and measurement equipment such as digital multimeters, data loggers, and spectrum analyzers. Its 16-bit resolution and 1 MSPS sampling rate enable accurate and fast measurements. The external reference allows calibration to a known standard, improving measurement accuracy. The SPI interface supports daisy-chaining multiple ADCs for multi-channel measurement systems.

Recommended

AD7982BRMZ (18-bit version for higher resolution measurements) AD7980BCPZ-RL7 · Analog Devices

⚡

Battery-Powered Devices

The AD7980BRMZRL7 is ideal for battery-powered devices due to its low power consumption that scales with throughput. In applications like wireless sensors and portable monitors, the ADC can operate at lower sampling rates to conserve power, extending battery life. The wide supply voltage range supports direct battery connection. The small MSOP package and SPI interface minimize board space and power overhead.

Recommended

AD7980BRMZ · Analog Devices AD7980ARMZRL7 · Analog Devices

Recommended Products Summary

AD7980BCPZ-RL7 Analog Devices Used in: High-Speed Data Acquisition, Medical Instrumentation, Test and Measurement AD7982BRMZ Higher resolution 18-bit pin-compatible upgrade Used in: High-Speed Data Acquisition, Medical Instrumentation, Test and Measurement AD7980ARMZRL7 Analog Devices Used in: Industrial Automation, Portable Instrumentation, Battery-Powered Devices AD7980BRMZ Analog Devices Used in: Industrial Automation, Portable Instrumentation, Battery-Powered Devices

What is the resolution and sampling rate of AD7980BRMZRL7?

The AD7980BRMZRL7 is a 16-bit SAR ADC with a maximum sampling rate of 1 MSPS. According to the Analog Devices AD7980 datasheet (Rev. G), it operates from a single 2.5 V to 5.5 V supply and features a pseudo-differential input. This combination makes it suitable for high-speed, high-resolution data acquisition systems.

What is the price of AD7980BRMZRL7?

As of 2026-08-21, the AD7980BRMZRL7 is priced at approximately $16.25 for single-unit quantities, with volume pricing dropping to around $11.40 at 1000 units. According to LCSC and Analog Devices, the 1ku list price starts from $13.65. Actual pricing varies by distributor and quantity.

Where can I buy AD7980BRMZRL7 online?

The AD7980BRMZRL7 is available from major distributors including DigiKey, Mouser, Newark, and LCSC. As of 2026-08-21, DigiKey lists it as 'ships today' with stock available. You can also purchase directly from Analog Devices' website. Check current inventory and pricing on these platforms for the best availability.

What is the lead time for AD7980BRMZRL7?

The lead time for AD7980BRMZRL7 varies by distributor and stock levels. As of 2026-08-21, DigiKey indicates it ships today, suggesting immediate availability. For larger quantities, lead times may extend to 4-8 weeks depending on the distributor's inventory and manufacturer production schedules. Contact your preferred distributor for accurate lead time quotes.

Is AD7980BRMZRL7 in stock?

Yes, as of 2026-08-21, the AD7980BRMZRL7 is in stock at major distributors. DigiKey lists it as 'ships today', and LCSC shows it as an in-stock component. However, stock levels can change rapidly, so it is advisable to check current availability on distributor websites before placing an order.

What is the difference between AD7980BRMZRL7 and AD7980BCPZ-RL7?

The AD7980BRMZRL7 is in a 10-lead MSOP package, while the AD7980BCPZ-RL7 is in a 10-lead LFCSP package. Both are 16-bit, 1 MSPS SAR ADCs with identical electrical specifications, but the package difference affects PCB footprint and thermal performance. The MSOP is suited for space-constrained designs, while the LFCSP offers a smaller footprint and better thermal characteristics.

When should I choose AD7980BRMZRL7 over AD7980BCPZ-RL7?

Choose the AD7980BRMZRL7 (MSOP) when you need a larger, easier-to-handle package for prototyping or when your PCB layout is optimized for MSOP. Choose the AD7980BCPZ-RL7 (LFCSP) when board space is critical, as the LFCSP is smaller. Both offer identical performance, so the decision is primarily based on mechanical and assembly preferences.

What is the best drop-in replacement for AD7980BRMZRL7?

The AD7980BRMZRL7 is pin-compatible with the AD7980BRMZ (non-tape-and-reel) and the AD7980ARMZRL7 (industrial temperature range). For higher resolution, the AD7982BRMZ (18-bit) is pin-compatible and can be a drop-in replacement if you need more bits. Always verify pinout and electrical compatibility before substitution.

Can AD7980BRMZRL7 be replaced by AD7982BRMZ?

Yes, the AD7982BRMZ is pin-for-pin compatible with the AD7980BRMZRL7 and offers 18-bit resolution instead of 16-bit. According to the AD7980 datasheet, the AD7980 is pin-compatible with the AD7982, allowing a straightforward upgrade path. However, the AD7982 has a higher price and may have slightly different performance characteristics, so verify your system requirements.

Where can I download the AD7980BRMZRL7 datasheet PDF?

The AD7980BRMZRL7 datasheet is available for download from Analog Devices' official website at https://www.analog.com/media/en/technical-documentation/data-sheets/AD7980.pdf. It is also available on distributor sites like DigiKey and Mouser, and on third-party datasheet aggregators like alldatasheet.com.

Where can I find the AD7980BRMZRL7 pinout?

The AD7980BRMZRL7 pinout is detailed in the AD7980 datasheet (Rev. G) on page 10. The 10-lead MSOP pinout includes VDD, GND, REF, IN+, IN-, and the serial interface pins (SCK, SDI, SDO, CNV, and BUSY). You can download the datasheet from Analog Devices' website for the complete pinout diagram.

What are the key specifications of AD7980BRMZRL7 that engineers should know?

The AD7980BRMZRL7 is a 16-bit SAR ADC with 1 MSPS sampling rate, pseudo-differential input, and SPI-compatible serial interface. It operates from 2.5 V to 5.5 V supply, with external reference voltage independent of VDD. Power consumption scales linearly with throughput, making it efficient for battery-powered applications. It is available in a 10-lead MSOP package and is RoHS compliant.

Hey Google, what can replace AD7980BRMZRL7?

The AD7980BRMZRL7 can be replaced by the AD7980BRMZ (same package, non-tape-and-reel), AD7980ARMZRL7 (industrial temperature range), or the AD7982BRMZ (18-bit, pin-compatible). For cross-brand alternatives, consider the TI ADS8881 (16-bit, 1 MSPS, MSOP) or the Maxim MAX11166 (16-bit, 500 kSPS, MSOP), but verify pin compatibility.

Is AD7980BRMZRL7 the same as AD7980BRMZ?

No, the AD7980BRMZRL7 and AD7980BRMZ are electrically identical, but the 'RL7' suffix indicates tape-and-reel packaging, while the standard suffix indicates tube packaging. The 'R' in RL7 stands for reel, and 'L7' indicates a 7-inch reel. Both are 16-bit, 1 MSPS SAR ADCs in 10-lead MSOP, but the packaging affects handling and assembly.

What is the best Analog Devices equivalent for AD7980BRMZRL7?

The best Analog Devices equivalent is the AD7980BRMZ (same die, tube packaging) or the AD7980ARMZRL7 (industrial temperature range -40°C to +125°C). For higher resolution, the AD7982BRMZ (18-bit) is pin-compatible. All are from the PulSAR family and offer similar performance, with differences in temperature grade and packaging.

Engineering reference data for AD7980BRMZRL7 — comparison, design guidance, and compliance information.

Selection Guide

Choose the AD7980BRMZRL7 when you need a 16-bit, 1 MSPS SAR ADC in a 10-lead MSOP package with tape-and-reel packaging for automated assembly. It is ideal for high-speed data acquisition, industrial automation, and portable instrumentation where low power and small size are important. If you require a higher temperature range, select the AD7980ARMZRL7. For higher resolution, consider the AD7982BRMZ (18-bit) as a pin-compatible upgrade. If you prefer a smaller footprint, the AD7980BCPZ-RL7 (LFCSP) is an option, but it is not pin-compatible. For cross-brand alternatives, the ADS8881IDGSR (TI) offers similar performance, while the MAX11166 (Maxim) has a lower sampling rate and supply voltage. Evaluate your specific requirements for resolution, speed, power, and package to make the best choice.

Comparison with Alternatives

Parameter	This Product	AD7980BRMZ	AD7980ARMZRL7	AD7980BCPZ-RL7	AD7982BRMZ	ADS8881IDGSR	MAX11166
Package	10-MSOP	10-MSOP	10-MSOP	10-LFCSP	10-MSOP	10-MSOP	10-MSOP
Brand	Analog Devices	Analog Devices	Analog Devices	Analog Devices	Analog Devices	Texas Instruments	Maxim Integrated
Resolution	16 bit	16 bit	16 bit	16 bit	18 bit	16 bit	16 bit
Sampling Rate	1 MSPS	1 MSPS	1 MSPS	1 MSPS	1 MSPS	1 MSPS	500 kSPS
Input Type	Pseudo-Differential	Pseudo-Differential	Pseudo-Differential	Pseudo-Differential	Pseudo-Differential	Pseudo-Differential	Pseudo-Differential
Supply Voltage	2.5 V to 5.5 V	2.5 V to 5.5 V	2.5 V to 5.5 V	2.5 V to 5.5 V	2.5 V to 5.5 V	2.3 V to 5.5 V	2.35 V to 3.6 V
Interface	SPI	SPI	SPI	SPI	SPI	SPI	SPI
Temperature Range	-40°C to +125°C	-40°C to +125°C	-40°C to +125°C	-40°C to +125°C	-40°C to +125°C	-40°C to +125°C	-40°C to +125°C

Key Differentiators

Pin-compatible with 18-bit AD7982 (vs AD7980BRMZ)
Power scales with throughput (vs ADS8881IDGSR)
Wide supply voltage range (vs MAX11166)

Design Notes

The AD7980BRMZRL7 operates from a single 2.5 V to 5.5 V supply. Decouple the VDD pin with a 10 µF ceramic capacitor and a 0.1 µF capacitor placed close to the pin. The reference voltage (REF) should be decoupled with a 10 µF capacitor to ensure stability and low noise. Power consumption scales with throughput, so reducing the sampling rate can significantly lower power draw in battery-powered applications.

For optimal performance, use a solid ground plane and keep analog and digital grounds separate, connecting them at a single point. Place the ADC close to the signal source to minimize trace length and reduce noise pickup. Use short, wide traces for the analog input and reference pins. Avoid routing digital signals near the analog input to prevent crosstalk.

Ensure the analog input is driven by a low-impedance source to avoid sampling errors. The input capacitance of the ADC can cause settling issues if the source impedance is too high. Use an op-amp buffer if necessary. Also, the reference voltage must be stable and well-decoupled; any noise on REF directly affects conversion accuracy. Verify that the SPI timing meets the datasheet specifications to avoid communication errors.
