EPC2LC20N vs EPC22LC20 Comparison
Detailed side-by-side comparison of EPC2LC20N by Intel and EPC22LC20 by Intel. Compare key specifications, electrical parameters, packaging, lifecycle status, pricing, and availability to determine the best component for your design requirements.
Specification Comparison
| Parameter | EPC2LC20N | EPC22LC20 |
|---|---|---|
| Brand | Intel | Intel |
| Category | Memory ICs | FPGA & CPLD |
| Lifecycle Status | Nrnd | Obsolete |
| Stock Status | In Stock | In Stock |
| Unit Price (USD) | $7.40 | $4.10 |
| Function | In-System Programmable Configuration PROM for SRAM-based FPGAs | In-System Programmable Configuration PROM for SRAM-based FPGAs |
| Memory Size | 1.6 Mbit | 1.6 Mbit |
| Memory Type | Flash | β |
| Programmable Type | In System Programmable (ISP) | In System Programmable (IEEE 1532 / Jam STAPL) |
| Supply Voltage VCCINT | 3.0 V to 3.6 V | β |
| Supply Voltage VCCIO | 4.75 V to 5.25 V | β |
| Configuration Clock Frequency | 8 MHz (max) | β |
| Interface | Serial (DATA0, DCLK, nCONFIG, nSTATUS, CONF_DONE) | β |
| JTAG Support | IEEE 1149.1 / IEEE 1532 compliant | β |

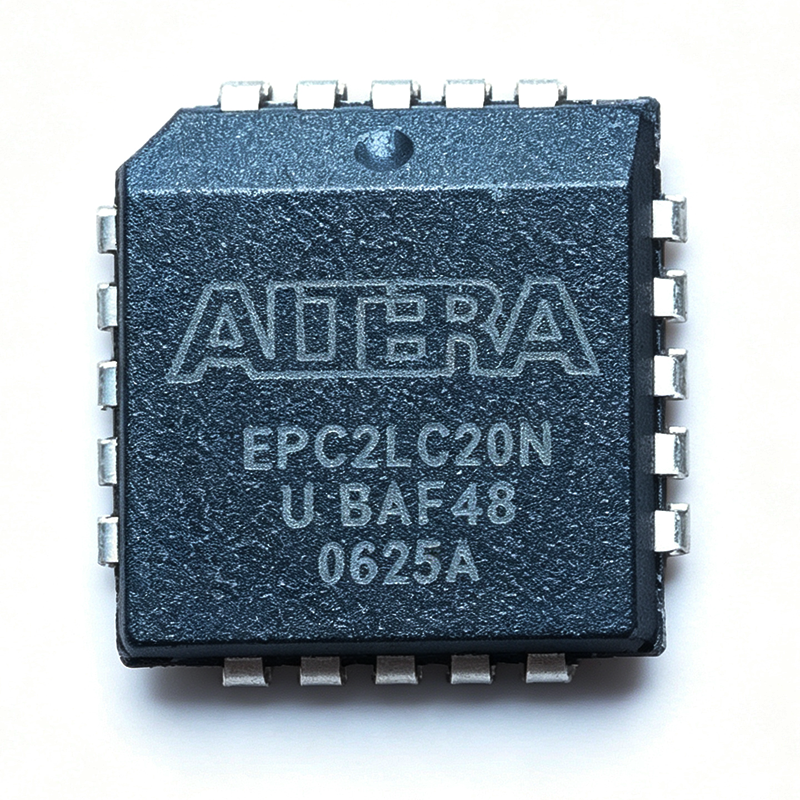

| Package | 20-pin PLCC (J-Lead, 9x9 mm) | β |
| Mounting Type | Surface Mount | Surface Mount (PLCC socket compatible) |
| Packaging | Tube | Tube |
| Operating Temperature | [DATA_NEEDED: operating temperature range] | 0 C to +70 C (commercial) |
| Supported FPGA Families | Altera APEX, Cyclone, Stratix, ACEX, MAX 7000 | ACEX 1K, APEX II, APEX 20K, FLEX 10K |
| RoHS Status | [DATA_NEEDED: RoHS status] | β |
| Supply Voltage - Low Range | β | 3.0 V to 3.6 V |
| Supply Voltage - High Range | β | 4.75 V to 5.25 V |
| Configuration Interface | β | Altera serial configuration (DCLK / DATA0 / nSTATUS / CONF_DONE) |
| Programming Interface | β | JTAG (IEEE 1149.1 / IEEE 1532) |
| Package / Case | β | 20-LCC (J-Lead, 9 x 9 mm) |
| Minimum DC Input Voltage | β | -0.3 V |
| Input Overshoot Tolerance | β | 7.0 V for <100 mA, <20 ns no-load |
| Input Undershoot Tolerance | β | -2.0 V for <100 mA, <20 ns no-load |
| Lead-Free / RoHS | β | [DATA_NEEDED: lead-free status not in verified data] |
